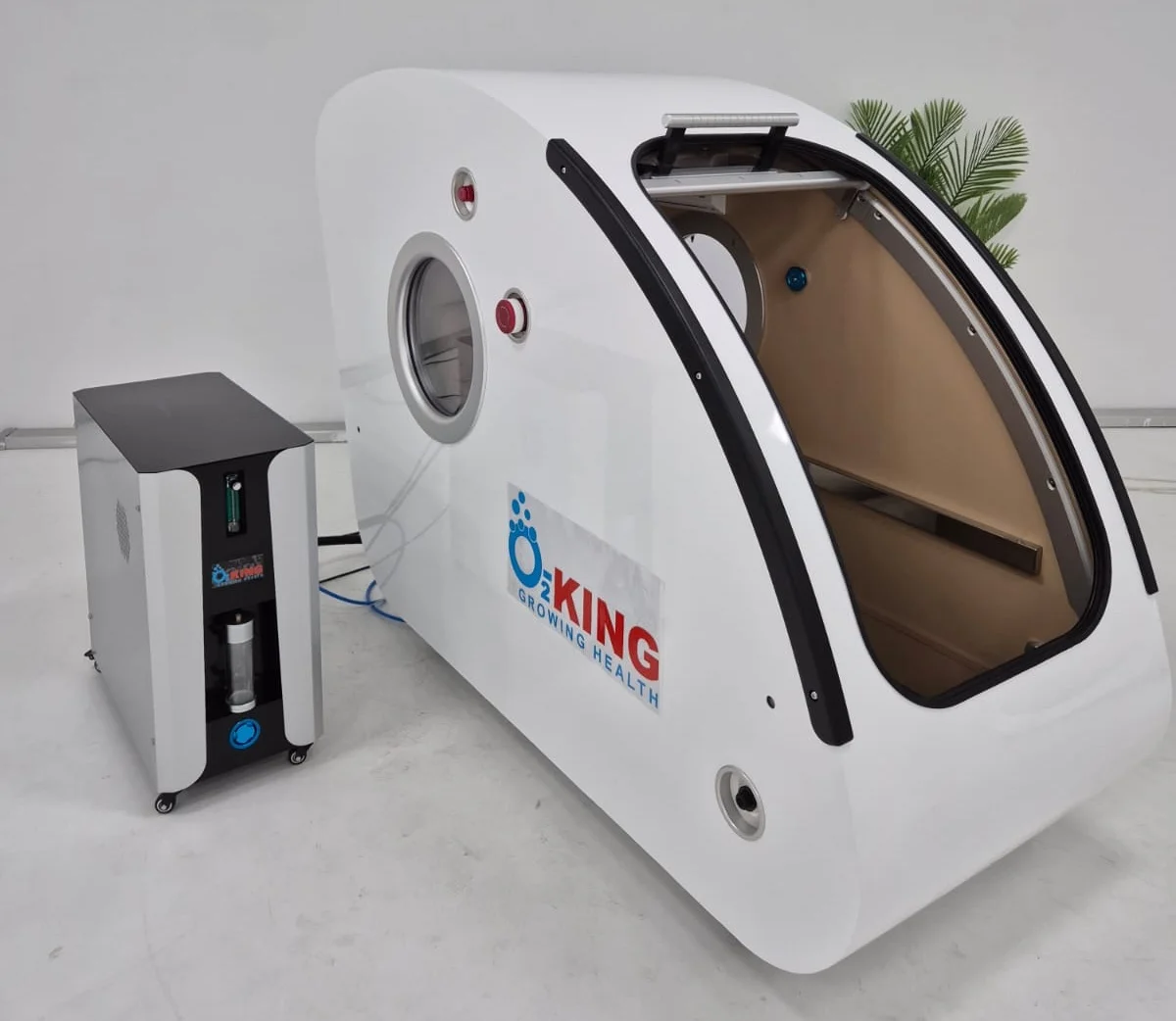

HBOT 2.0ATA Hard Sitting Hyperbaric Oxygen Cabin

Product Categories

HBOT 2.0ATA Hard Sitting Hyperbaric Oxygen Cabin

Explore our 2.0ATA hard sitting hyperbaric oxygen cabin for advanced therapy solutions. Ideal for clinics seeking efficient and spacious oxygen treatment chambers.

Features

2.0 ATA working pressure
Sliding inlet door, pressure seal, door opening and lowering system
Two way communication intercom system
Automatic pneumatic control system
Two large transparent windows on both sides
Easy installation and operation
Provides 95%-98% oxygen under pressure through oxygen earphones/masks
Internal pressure gauge – the user can observe the pressure in the Cabin
Ultra quiet exhaust valve
It integrates air compressor, oxygen concentrator and cooler

Model: O-1PSHC

Specification:

Cabin Size: L2200*W880*H1550mm
Material: Stainless steel+PC engineering plastics
Hatch door:PC Endurance Board
Working pressure: 2.0ATA
Window number:3
Weight: 700kg

Model: 10L All-in-one machine

Specification:

1*Oil Free Air Compressor
1*10L Oxygen Concentrator
2*Cooling Machine
Anion Air Purifier
Air Sterilizer/Anti-virus System
Air Filter
Humidity Water Cotainer
Oxygen Flow:10L/min
Air flow: 110 L/min
Power:1300W

Pressure regulating valve

Specification:

Pressure switch valve allows to adjust the pressure at 1.4-1.6-1.8-2.0ATA, one simple press, different pressure levels adjustable.

Adjustable seat

Specification:

Sitting or lying down can be controlled by the body

Including & Standard accessories:

Including

2* manual pressure reducing valve (inside and outside)
2* Automatic pressure relief valve
2* muffler cap
2 * Pressure gauge (inside and outside)
1 * Emergency pressure relief valve 1*Phone Communication System 1*Reading Light
2*Display Screen (inside and outside) 2*Control Panels (inside and outside) 1*Adjustable seat
1 extra filters for free
1 complimentary oxygen masks
Spare fuse
